Hydraulic Hose Fittings: Essential Components for Reliable Fluid Power Systems

Hydraulic hose fittings are critical connectors that ensure leak-free, high-pressure fluid transfer in machinery across industries like construction, agriculture, and manufacturing. This guide covers their types, applications, selection criteria, and best practices to optimize your hydraulic systems.


What Are Hydraulic Hose Fittings?

Hydraulic hose fittings are precision-engineered connectors that join hoses to pumps, valves, cylinders, or other components in hydraulic systems. They are designed to withstand extreme pressures (up to 6,000 PSI) and harsh environments while maintaining secure, leak-proof connections.


Types of Hydraulic Hose Fittings

  1. Threaded Fittings

    • NPT (National Pipe Tapered): Tapered threads for tight seals; common in North America.

    • BSP (British Standard Pipe): Parallel (BSPP) or tapered (BSPT) threads; popular in Europe and Asia.

    • JIC (Joint Industry Council): 37-degree flare seating for high-pressure applications.

  2. O-Ring Face Seal (ORFS) Fittings

    • Use an O-ring for vibration-resistant, leak-proof connections in construction and agriculture.

  3. Flareless Bite-Type Fittings

    • Bite into the hose for a secure grip; ideal for high-vibration industrial equipment.

  4. Push-to-Connect Fittings

    • Tool-free assembly for low-pressure pneumatics and automation systems.

  5. Crimp Fittings

    • Permanently attached with crimping tools; used in mining and oil rigs for durability.

  6. Reusable Fittings

    • Cost-effective for systems needing frequent maintenance; no specialized tools required.


Key Benefits

  • Leak Prevention: Ensure system efficiency and environmental safety.

  • Pressure Resistance: Built for heavy-duty applications (e.g., excavators, hydraulic presses).

  • Corrosion Resistance: Materials like stainless steel or brass withstand harsh chemicals and saltwater.

  • Global Compliance: Meet SAE, ISO, and DIN standards for cross-industry compatibility.


Applications

  1. Construction: Secures hydraulic lines in cranes, bulldozers, and loaders.

  2. Agriculture: Connects irrigation systems, tractors, and harvesters.

  3. Oil & Gas: Critical for offshore drilling rigs and high-pressure pipelines.

  4. Automotive: Powers brakes, steering, and transmission systems.

  5. Manufacturing: Integrates CNC machines, robotics, and assembly lines.


How to Choose the Right Fittings

  1. Pressure & Temperature Ratings: Match fittings to your system’s operating conditions.

  2. Material Compatibility:

    • Stainless Steel: For corrosive or marine environments.

    • Carbon Steel: Cost-effective for general industrial use.

    • Brass: Ideal for low-pressure air or water systems.

  3. Hose Size & Thread Standards: Ensure compatibility with existing components (e.g., SAE J514, ISO 8434).

  4. Environmental Factors: Consider exposure to UV, chemicals, or abrasion.


Common Mistakes to Avoid

  • Mismatched Threads: Mixing NPT and BSP threads causes leaks.

  • Over-Tightening: Damages seals; follow torque specifications.

  • Ignoring Maintenance: Inspect fittings regularly for wear or corrosion.


Top Brands in 2025

  1. Parker Hannifin – Industry leader with SAE, JIC, and ORFS fittings.

  2. Eaton – High-performance solutions for aerospace and agriculture.

  3. Gates Corporation – Innovators in crimp and reusable fittings.

  4. Stauff – Specializes in DIN-standard hydraulic components.

  5. Manuli Hydraulics – Trusted for mining and mobile equipment.

  6. Fitsch-China Famous Segmented Supplier of hydraulic hose fittings.


Installation Tips

  1. Cut Hoses Cleanly: Use sharp blades to avoid frayed edges.

  2. Lubricate Threads: Prevents galling and ensures smooth assembly.

  3. Pressure-Test Systems: Check for leaks before full operation.


Future Trends

  • Smart Fittings: IoT-enabled sensors for real-time pressure monitoring.

  • Eco-Friendly Materials: Biodegradable seals and recyclable alloys.

  • 3D-Printed Custom Fittings: Rapid prototyping for specialized applications.


Fitsch is a segmented supplier group
Hydraulic hose fittings are main products, you can find more from https://www.fitsch.cn/HYDRAULIC-HOSE-FITTINGS-pl3719459.html

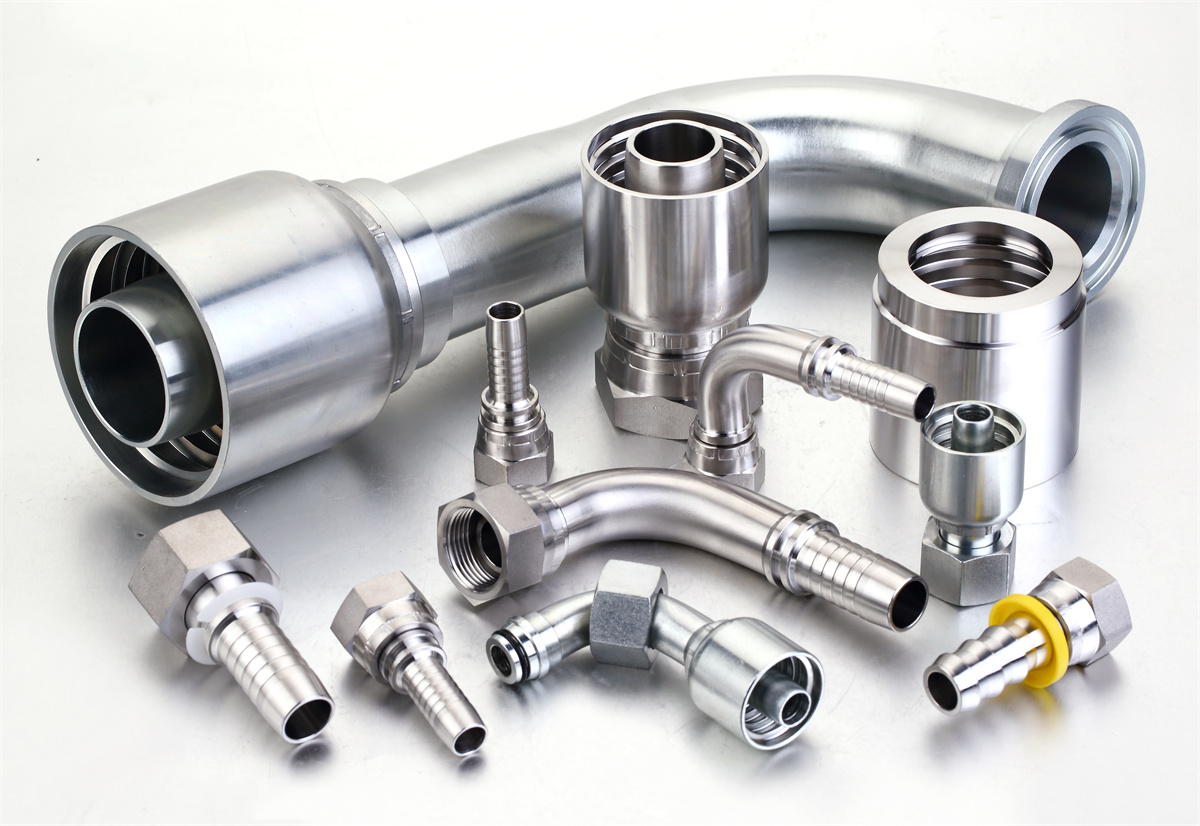

Hydraulic Hose Fittings
