Hydraulic Ball Valves: Essential Components for Reliable Fluid Control

Views: 0     Author: Site Editor     Publish Time: 2025-02-02      Origin: Site

Introduction to Hydraulic Ball Valves
Hydraulic ball valves are critical in managing fluid flow within high-pressure systems. Their robust design, featuring a rotating ball with a bore, ensures efficient shut-off and control, making them indispensable in industries requiring precision and durability. This article explores their mechanics, types, applications, and benefits, guiding you to optimize your hydraulic systems.

How Do Hydraulic Ball Valves Work?
A hydraulic ball valve operates via a quarter-turn mechanism. The ball inside the valve has a central bore; aligning this bore with the flow path opens the valve, while rotating it 90 degrees using a handle or actuator blocks flow. This simple yet effective design allows rapid operation, crucial in emergency scenarios.

Key Features of Hydraulic Ball Valves

  • Durability: Constructed from materials like stainless steel or brass, these valves withstand harsh environments.

  • High-Pressure Resistance: Engineered for systems exceeding 10,000 PSI, ideal for heavy-duty applications.

  • Leak-Proof Sealing: Advanced seals (PTFE, nylon) prevent leaks, ensuring system integrity.

  • Compact Design: Space-efficient for complex installations.

  • Versatility: Compatible with oils, water, and chemicals.

Types of Hydraulic Ball Valves

  1. Floating Ball Valves: The ball is suspended by seals, suitable for moderate pressures.

  2. Trunnion-Mounted Ball Valves: Anchored mechanically for high-pressure stability.

  3. Multi-Port Valves: Feature multiple channels for flow diversion.

  4. V-Port Ball Valves: Offer precise flow control with a contoured bore.

Applications Across Industries

  • Oil & Gas: Manages corrosive fluids in pipelines.

  • Manufacturing: Controls hydraulic machinery.

  • Agriculture: Operates irrigation and spray systems.

  • Automotive: Used in braking and fuel systems.

  • Water Treatment: Regulates potable and wastewater.

Advantages Over Other Valve Types

  • Quick Operation: Quarter-turn actuation enables faster response than gate or globe valves.

  • Low Maintenance: Fewer moving parts reduce wear.

  • Bidirectional Flow: Efficient in either flow direction.

  • Long Service Life: Resilient construction minimizes replacements.

Selecting the Right Hydraulic Ball Valve
Consider these factors:

  • Pressure Rating: Match valve specs to system demands.

  • Material Compatibility: Choose corrosion-resistant materials for specific fluids.

  • Temperature Range: Ensure seals and body withstand operational temps.

  • Connection Type: Threaded, flanged, or welded ends for seamless integration.

  • Actuation Method: Manual handles or automated actuators (pneumatic, electric) based on use case.

Maintenance Tips for Longevity

  • Regular Inspections: Check for wear, leaks, or corrosion.

  • Lubrication: Apply compatible grease to stems and balls periodically.

  • Clean Internals: Flush to remove debris preventing blockages.

  • Seal Replacement: Swap degraded seals promptly to avoid leaks.

Fitsch Conclusion
Hydraulic ball valves offer unmatched reliability and efficiency in fluid control systems. By understanding their types, applications, and maintenance needs, industries can enhance operational safety and productivity. For tailored solutions, consult with hydraulic experts to select valves meeting your system’s unique demands.

Fitsch offer you carbon steel and stainless steel hydraulic ball valves. https://www.fitsch.cn/BALL-VALVE-pl3086519.html

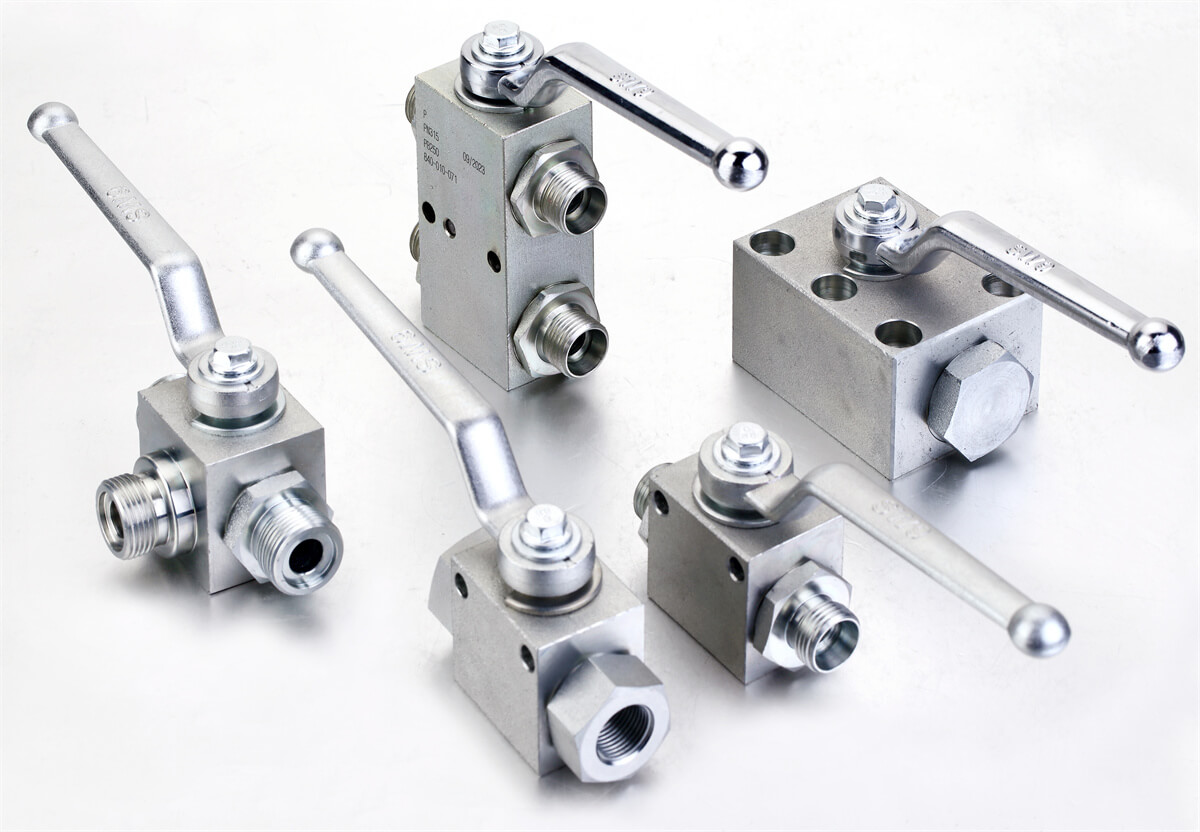

Hydraulic ball valve manufacturers
