DIN Hydraulic Fittings: Precision, Reliability, and Compliance in Fluid Systems

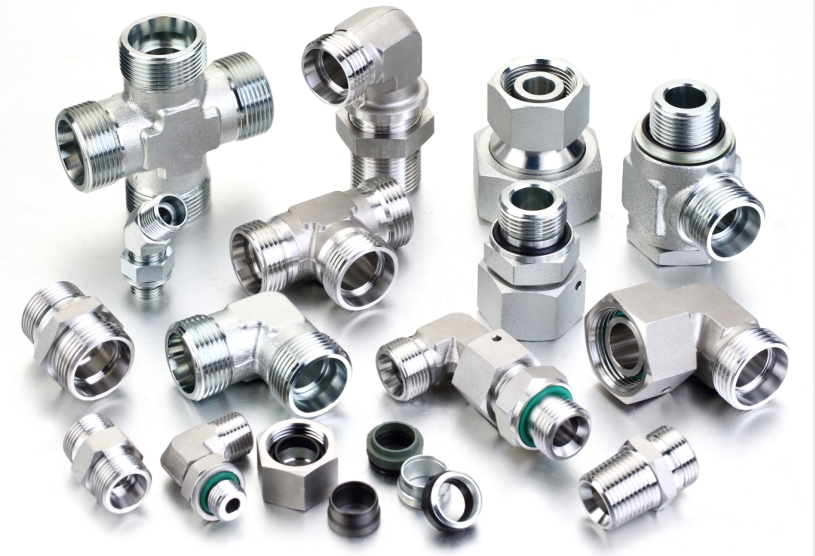

din tube fittings

Introduction

In the world of hydraulic and pneumatic systems, standardization is key to ensuring seamless performance and global interoperability. DIN (Deutsches Institut für Normung) hydraulic fittings, governed by rigorous German engineering standards, are synonymous with precision, durability, and compliance. This article dives into why DIN fittings are a cornerstone of European industrial applications and how they deliver unmatched reliability in high-pressure environments.





What Are DIN Hydraulic Fittings?

DIN fittings are standardized hydraulic connectors designed to meet specifications set by Germany’s national standards organization. These fittings ensure uniformity in dimensions, materials, and pressure ratings, making them a staple in industries requiring strict adherence to quality and safety. Key DIN standards include:

- DIN 2353: Defines compression fittings for metric tubing.

- DIN 20066: Covers hydraulic flanges and their connections.

- DIN 3861: Governs Cutting Ring fittings for leak-free performance.


Characterized by metric measurements and precision-machined threads, DIN fittings are engineered for high-pressure fluid transfer systems, offering compatibility with European machinery and global industrial equipment.





Advantages of DIN Hydraulic Fittings

1. Standardized Precision

DIN specifications guarantee exact dimensions and tolerances, ensuring leak-proof connections and interchangeability across compliant systems.


2. Robust Construction

Manufactured from materials like carbon steel, stainless steel, and brass, DIN fittings withstand extreme pressures (up to 10,000 PSI in some variants) and harsh environments.


3. Leak Resistance

Designs like the O-ring face seal (ORFS) in DIN 3861 fittings provide superior sealing, critical for systems handling hazardous or high-value fluids.


4. Global Compliance

Widely recognized in Europe and adopted internationally, DIN fittings meet ISO and other regional standards, simplifying cross-border procurement.


5. Versatility

Available in a range of types—compression, flare, and flange fittings—DIN solutions cater to diverse applications, from hydraulics to pneumatics.





Key Applications of DIN Fittings

DIN fittings are indispensable in industries where precision and reliability are non-negotiable:

- Industrial Machinery: Used in CNC machines, presses, and injection molding systems.

- Automotive & Heavy Equipment: Integral to brake systems, fuel lines, and construction machinery.

- Oil & Gas: Deployed in high-pressure pipelines, drilling rigs, and refineries.

- Renewable Energy: Support hydraulic systems in wind turbines and solar power plants.

- Chemical Processing: Corrosion-resistant stainless steel DIN fittings handle aggressive fluids safely.





How to Choose the Right DIN Fitting

1. Understand the Standard

Match the fitting to the relevant DIN specification (e.g., DIN 2353 for metric tube compression).


2. Material Selection

- Carbon Steel: Cost-effective for general-purpose use.

- Stainless Steel: Ideal for corrosive or high-temperature environments.

- Brass: Suitable for low-pressure pneumatic systems.


3. Pressure & Temperature Ratings

Ensure the fitting’s rated pressure exceeds system requirements. For example, DIN 2353 Series L (light) vs. Series S (heavy).


4. Thread Compatibility

Confirm metric thread types (e.g., M12x1.5) to avoid mismatches with existing components.


5. Environmental Factors

Consider exposure to chemicals, abrasion, or extreme temperatures when selecting coatings or materials.





Maintenance Tips for Longevity

- Regular Inspections: Check for wear, corrosion, or deformation.

- Proper Installation: Use torque wrenches to avoid under/over-tightening.

- Cleanliness: Prevent contamination by flushing lines before assembly.

- Replace O-Rings: Ensure seals are intact to maintain leak-free performance.





DIN vs. Other Standards: What Sets Them Apart?

While JIC (37° flare) and SAE fittings dominate in North America, DIN standards prioritize metric measurements and O-ring sealing technology. DIN fittings are **not directly interchangeable** with SAE/JIC threads without adapters, underscoring the importance of selecting region- or machinery-specific components.



Fitsch Conclusion: Elevate Your Systems with DIN Compliance

DIN hydraulic fittings represent the gold standard in precision engineering, offering industries a reliable, globally recognized solution for high-pressure fluid systems. By adhering to DIN specifications, businesses reduce downtime, enhance safety, and ensure seamless integration with European and international equipment.



Upgrade to DIN Excellence Today

Explore our certified range of DIN hydraulic fittings, designed to meet the toughest industrial demands. Contact our team for expert guidance—because every connection should embody precision and trust.
